3 Axle Livestock Transport Fence Truck Trailer Stake Semi Trailer

Shape : Flatbed

Axle Number : 3 Axles

Tire Number : 12 Linglong Tyres

Self-dumping : Not Self-dumping

ABS Anti-lock Braking System : No ABS Anti-lock Braking System

Material : Steel

Condition : New

Size : 13000X2500X3800

Color : Red, White and So on

Loading Capacity : 40-60t

Axles : Fuwa, BPW 13t,16t,20t

Suspension : Tri-Axle 10-PCS Leaf Spring

Electrical : 24V, 7 Lines

King Pin : 50# & 90#

Landing Gear : Fuwa, Jost 28t

Transport Package : by Bulk Vessel/ RO-RO

Trademark : FOREVER

Origin : China

Supply Ability : 2000

Type : Semi-Trailer

Load Capacity : 30T

Certification : ISO9001, CCC

Wheel Base : 9000-10000mm

Tread : 1820mm

Grade : Heavy Duty

Customization : Available | Customized Request

Contact Now

Product Description

Company Info.

Customer Question & Answer

Ask something for more details

(0)

Basic Info.

Shape

Flatbed

Axle Number

3 Axles

Tire Number

12 Linglong Tyres

Self-dumping

Not Self-dumping

ABS Anti-lock Braking System

No ABS Anti-lock Braking System

Material

Steel

Condition

New

Size

13000X2500X3800

Color

Red, White and So on

Loading Capacity

40-60t

Axles

Fuwa, BPW 13t,16t,20t

Suspension

Tri-Axle 10-PCS Leaf Spring

Electrical

24V, 7 Lines

King Pin

50# & 90#

Landing Gear

Fuwa, Jost 28t

Transport Package

by Bulk Vessel/ RO-RO

Trademark

FOREVER

Origin

China

Production Capacity

2000

Product Description

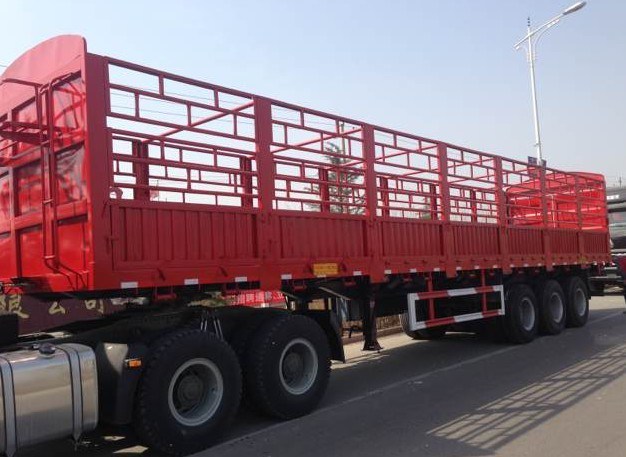

3 Axle Livestock Transport Fence Truck Trailer Stake Semi Trailer

MAIN PERFORMANCE

Product Specification
1	Type	Semitrailer
2	Product Name	Multi-function Cargo Semitrailer
3	Cargo Body	Body Dimension		12350x2350x1800mm
		External Dimension		12550x2500x3600mm
		Baseplate		Corrugated Steel
		Container Lock		12 UNITS
		back Door		Optional
4	Tare Weight	7200kg
5	Payload	40t
6	Running System	Axles	FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles
		Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement)
		Tires	Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit
7	Ladder	Manually operated or Hydraulic type
8	Braking System	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system
9	Frame	Main Beam		Q345B steel,Height 500, upper 8mm, lower 10mm. Mid web 6mm
		Cross Beam		Mild Alloy Q235
10	King Pin	Size: 50# (2'') or 90#(3.5''); Type: welded or assembled
11	Landing Gear	FUWA, JOST Brand Single side operation or double side operation, Static capacity 28Ton
12	Electrical & Paint	Electrical		Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
		Lights & Reflectors		24V, 7 lines
		Painting		zinc-rich primer and modified urethane topcoat as customers' choices.
		Accessorise		TOOL BOX (BOX ONLY)---PROVIDED WITH THE TRAILER TWO SPARE WHEEL HOLDER(WINCH),BUT NO SPARE TYRES

I.The Application and the Technical Highlights:
---The Fence Cargo truck semitrailers are mainly suitable for the MID/Long distance transportation of fruits, vegetable,rice and the agricultural cargo and so on.
---In order to reduce the trailer tare weight,we design the trailer structure according to the user's transporting cargo.The lightest weight of our trailer can be signed to 5.6t.Our trailer can creat more profit value in the case of meeting the load.
---The chassis is ladder type,longitudinal beam section is H-shaped. It has good rigidity and high strength.
--- High Quality Body and high-tensile steel for heavy loading capacity with lighter kerb weight.
--- BPW, FUWA or Certificated Chinese Axles
---ABS brake system
---WABCO Vehicle Control System
---JOST ,FUWA or Chinese brand parking leg and king pin
---Air and Mechanical Suspension
---Strengthen the Chassis Instructure

3 Axle Livestock Transport Fence Truck Trailer Stake Semi Trailer

The Advantage
***Frame:using the advanced assembly welded equipments to weld the space frame structure which formed by welded-type longitudinal beam (made of High strength steel T700) and the whole Run-through cross beam.Our consider the strength,stiffness and toughness of the frame and design the frame is strong enough to carry the cargo.

***Suspension: Lightweight design.High-strength material with strong carrying capacity, remarkable wear resistance property and performance stability and long service life.Wheel Track adjustable easily and accurately, which protect the tires from abnormal wear.Passed strict bench testing and road testing.

***Axle:Specially processed one-piece spindle of high quality low alloy steel, which possesses strong loading capacity, long life, light weight and remarkable performance.High machining precision of the braking system makes the braking performance more stable.

3 Axle Livestock Transport Fence Truck Trailer Stake Semi Trailer

III.Advanced Process
~~~Design Drawing: Before production, we will sent the design drawing to our customer to confirm the detail of the vehicle. We hope we can supply the most suitable product to our customer.

~~~Cutting and Welding: The I beam cutting adopt the Computer Numerical Control Plasma Cutting Machine. The I beam welding adopt the Gantry Main Sill Welding Machine.

~~~The Beam Welding: Main beam and side beam all use I-shaped beam, it can ensure the trailer more durable.Reinforced rear plate can avoid the rear plate was broken away when heavy duty machines climbing the ramp of trailer.

~~~Surface Treatment: In order to remove the rust of the trailer body, we use the sand blasting to retreat the surface of the trailer.
The trailer can have the beautiful appearance,the painting will be coating evenly, firm adhension, gloss more durable

~~~Painting: One layer of the anti-rust painting, two layer of painting

~~~Test: We will test the quality of the trailer before delivery.

IV. The Detail of the Fence Cargo Trailer

V. The Classification

VI. Guarrantee For The Parts Of The Tanker Traielr:

ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
MAIN FRAME	FRAME		1 YEAR	RUNNING GEAR	AXLE	6 MONTHS
	SUSPENSION		6 MONTHS		AXLE BEARING	3 MONTHS
	KING PIN		1 YEAR		WHEEL HUB	3 MONTHS
	BALANCE ARM		3 MONTHS
ITEM NAME			WARRANTY	ITEM NAME		WARRANTY
BRAKING DEVICE		BRAKE DRUM	3 MONTHS	SUPPORT DEVICE	LANDING GEAR	6 MONTHS
		BRKE CHAMBER	3 MONTHS		SPARE WHEEL CARRIER	6 MONTHS
		AIR RESERVOIR	6 MONTHS
ITEM NAME					WARRANTY
OTHERS		LEAF SPRING			3 MONTHS
		BRAKE CHAMBER DIAPHRAGM			3 MONTHS
		EMERGENCY RELAY VALVE			3 MONTHS
		BRAKE SHOE			3 MONTHS
		RELAY VALVE			3 MONTHS

VII. DEALING PROCESS

1. You send us an inquiries on your desired trailer through our contact information.
2. We shall reply you in 12 hours after we received our inquiry.
3. We will negotiate the detail of the trailer on your requirement.
4. Confirmed on the tech data.
5. Sign contract.
6.30% down payment or LC issuing.
7. Production
8. The Manufacturig process with updated news.
9. The Production completement.
10.Balance payment .
11.Arrange Shipment and Custom Clearance
12. A/S service for 1 year.
